3003 H24 aluminium tread plate for truck,floor,bus,boat

Aluminum diamond plate Brite Finish sheets are pressed aluminum sheets bearing a raised diamond pattern on one side. They are weather and corrosion proof and easy to clean, as well as being skid-resistant. This makes them suitable for a wide variety of applications, indoors and outdoors. It is also known as diamond plate, checker plate, durbar plate. It is a type of aluminum metal sheet with a pattern of raised diamonds or lines on the front side. The shining and raised diamond pattern is masculine and sharp-looking, instantly giving a striking look.

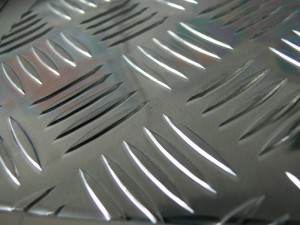

Aluminum ‘diamond’ plate, with raised pattern of diamond on one side (reverse side featureless).
• Robust aluminum diamond plate
• Corrosion resistant, Anti-slip
• Hot-Rolled – Perfect for Fabrication
• Suitable for many practical and decorative applications, including floors, trailers and exercise rooms
• Available Standard thickness in 0.045″(Made in USA,) 0.063″ 0.080″, 0.010″, 0.125” (heavy duty thickness)

Specificaiton:

1)Alloy: 3003
2)Temper : H24
3)Thickness: 0.5—8mm
4)Width:90mm2500mm
Dimensions can be produced according to clients’ specifications
Properties:
Aluminum diamond plate has been specially formulated and manufactured to create an attractive yet robust material suitable for a wide variety of applications. The raised diamond pattern on the sheets is formed by hot rolling the aluminum. Embossed (recessed) diamond sheets are also available. Diamond plates can be polished to a highly reflective finish for applications that require a beautiful surface as well as a tough exterior.

The sheets are made from Aluminum 3003, which consists of aluminum alloyed with 1.2 percent manganese and traces of several other materials. This provides superior strength over pure aluminum, creating a more durable product that can still be cut and shaped effectively. The metal is strain-hardened and partially annealed (a form of treatment the improves malleability). The sheets gain their strength from cold-working alone and cannot be heat treated.

The result is that aluminum diamond plate sheets have good innate corrosion resistance and moderate strength for their thickness. As well as being robust and lightweight, Aluminum 3003 is moisture and weather-resistant. The raised diamond pattern provides a high degree of slip resistance despite the smooth, mirror finish which gives the product a reflective surface and unique decorative appearance.

Aluminum 3003 has a wide range of applications in chemical equipment and sheet metal work, as well as cooking utensils and pressure vessels, garage doors, awning slats, storage and gasoline tanks and a variety of drawn and spun components. In sheet form, a relatively low thickness nevertheless provides a high degree of rigidity, whilst remaining formable under the right circumstances.

Aluminum 3003’s excellent machinability for its strength means it can easily be cut, shaped and finished while remaining a durable and versatile material. It is straightforward to weld, drill, saw, shear and form, with little wear on tools. Diamond sheets can be cut down to the required size and shape with minimal effort, whilst the pre-formed diamond texture provides an attractive and anti-slip surface to the aluminum. This makes it popular as a flooring material, particularly where safety is an issue or where surfaces need to be resistant to dirt and moisture and easy to clean.

Application:
0.063-inch diamond plate is suitable for the majority of applications. Its diamond texture gives excellent anti-skid properties, and it is often used in industrial settings for stairways, catwalks, ramps and walkways where wet conditions may otherwise pose a risk of sliding or falling. These non-slip properties also make it a common solution for ambulance floors and for the footplates of firetrucks, as well as domestic truck beds and trailer floors.

Diamond plate can also be used for wall panels, counter tops and tiling for other surfaces, and various architectural uses. Since it is easy to machine as well as being robust and attractive, diamond plate tool boxes are another popular application. It is frequently employed to finish edges and corners of items made of other materials, where an extra element of wear-resistance is required. When fitting diamond plate in sheets or angles, care should be taken to select the right materials for fixing. Zinc-plated screws can be used but aluminum rivets or other fixings may contribute to corrosion due to the differing electrolytic properties of the metals. If in doubt seek advice and be sure to match materials appropriately to avoid long-term problems.

Where a higher degree of durability is required, 0.125-inch diamond plate provides an extremely tough solution that retains the attractive, mirrored finish and non-slip diamond texture of the thinner 0.063-inch plate. This is harder to shape but can still be cut to order and machined using the right tools.

Both thicknesses of diamond plate combine functional properties with aesthetic appeal and span practical and ornamental applications. Further, the corrosion-resistant properties and weather-proof nature of the aluminum alloy used mean that maintaining the appearance and bright finish of the product should be a simple matter. Maintenance is usually a case of brushing and wiping clean, though in many instances this will not be necessary at all.

Bozhong is a professional diamond aluminum tread plate manufacturer and supplier based in China. In order to meet customers’ various requirements, we also provide aluminium slit coil, aluminum strip, anodising aluminum sheet, aluminum coil, coated aluminum coil, aluminum plate, etc. If you have any related need, please contact us via any of the methods listed on the website.
