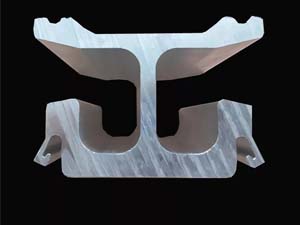

Aluminium Conductor Guide Rail for in Transportation

Product Detail

Product Tags

Production Capacity: 100, 000 Tons/ Year

Payment Terms: T/T, L/C, Western Union, Paypal

Certification: ISO9001, RoHS,

Shape: As per customized drawing

Material available: Aluminum alloy 1000-8000series

Machinery in Process: Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery

Model & Capacity of the extruded Equipment

Model	Qty.	Function	Size of extrusion barrel(mm)	Outlet size of compression machine(mm)	Size of extruded rod(mm)	Weight of Aluminum bar
630T	2	Forward single action extrusion	Ф95*500	Ф130*150	Ф90*450	6.8KGS
1000T	1	Forward single action extrusion	Ф132*600	Ф150*180	Ф127*550	17.8KGS
1350T	1	Forward & reverse double -acting extrusion	Ф155*650	Ф180*200	Ф150*600	26KGS
2500T	1	Forward & reverse double -acting extrusion	Ф236*950	Ф310*370	Ф229*900	93KGS
3600T	1	Forward double -acting extrusion	Ф320*1200	Ф400*520	Ф310(550-1100),Ф280(550-1100)	112KGS-224KGS
Auxiliary equipment: 1 set 7m aging furnace and 1 set 14m aging furnace

What is Aluminum Extrusion?
Aluminum extrusion is the introduction of a heated aluminum ingot into a container and forcing it at high pressure through the profiled opening of a die which corresponds to the cross-section of the extrusion.

How to change the profile design into a real product?
CAD drawings evaluation as per extrusion natures-
CAD drawings finalized-
Tooling drawings approved-

Tooling development-
Extrusion-
Off-tool samples for approval-
Bulk production-

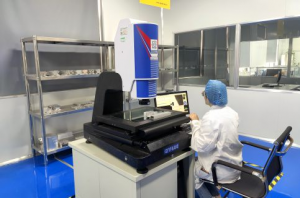

Quality checking and packing-
Delivery-

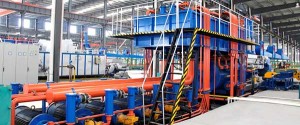

Our Workshop
