Aluminium Profile Extrusion for Tranport Conductor Guide Rail
Product Detail
Product Tags
Production Capacity: 100, 000 Tons/ Year
Payment Terms: T/T, L/C, Western Union, Paypal
Certification: ISO9001, RoHS,
Shape: As per customized drawi.
Material available: Aluminum alloy 1000-8000series
Machinery in Process: Metal Recycling Machine, Metal Cutting Machine, Metal Straightening Machinery, Metal Spinning Machinery, Metal Processing Machinery Parts, Metal forging Machinery, Metal Engraving Machinery, Metal Drawing Machinery, Metal Coating Machinery, Metal Casting Machinery
Model & Capacity of the extruded Equipment
|
Model |
Qty. |
Function |
Size of extrusion barrel(mm) |
Outlet size of compression machine(mm) |
Size of extruded rod(mm) |
Weight of Aluminum bar |
|
630T |
2 |
Forward single action extrusion |
Ф95*500 |
Ф130*150 |
Ф90*450 |
6.8KGS |
|
1000T |
1 |
Forward single action extrusion |
Ф132*600 |
Ф150*180 |
Ф127*550 |
17.8KGS |
|
1350T |
1 |
Forward & reverse double -acting extrusion |
Ф155*650 |
Ф180*200 |
Ф150*600 |
26KGS |
|
2500T |
1 |
Forward & reverse double -acting extrusion |
Ф236*950 |
Ф310*370 |
Ф229*900 |
93KGS |
|
3600T |
1 |
Forward double -acting extrusion |
Ф320*1200 |
Ф400*520 |
Ф310*(550-1100),Ф280*(550-1100) |
112KGS-224KGS |
| Auxiliary equipment: 1 set 7m aging furnace and 1 set 14m aging | ||||||
Our Works
Research Cente

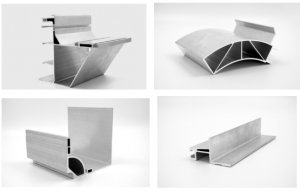

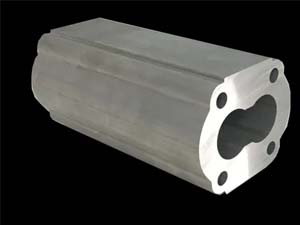

Finished Products
How to change the profile design into a real product?
CAD drawings evaluation as per extrusion natures-
CAD drawings finalized-
Tooling drawings approved-
Tooling development-
Extrusion-
Off-tool samples for approval-
Bulk production-
Quality checking and packing-
Delivery-
